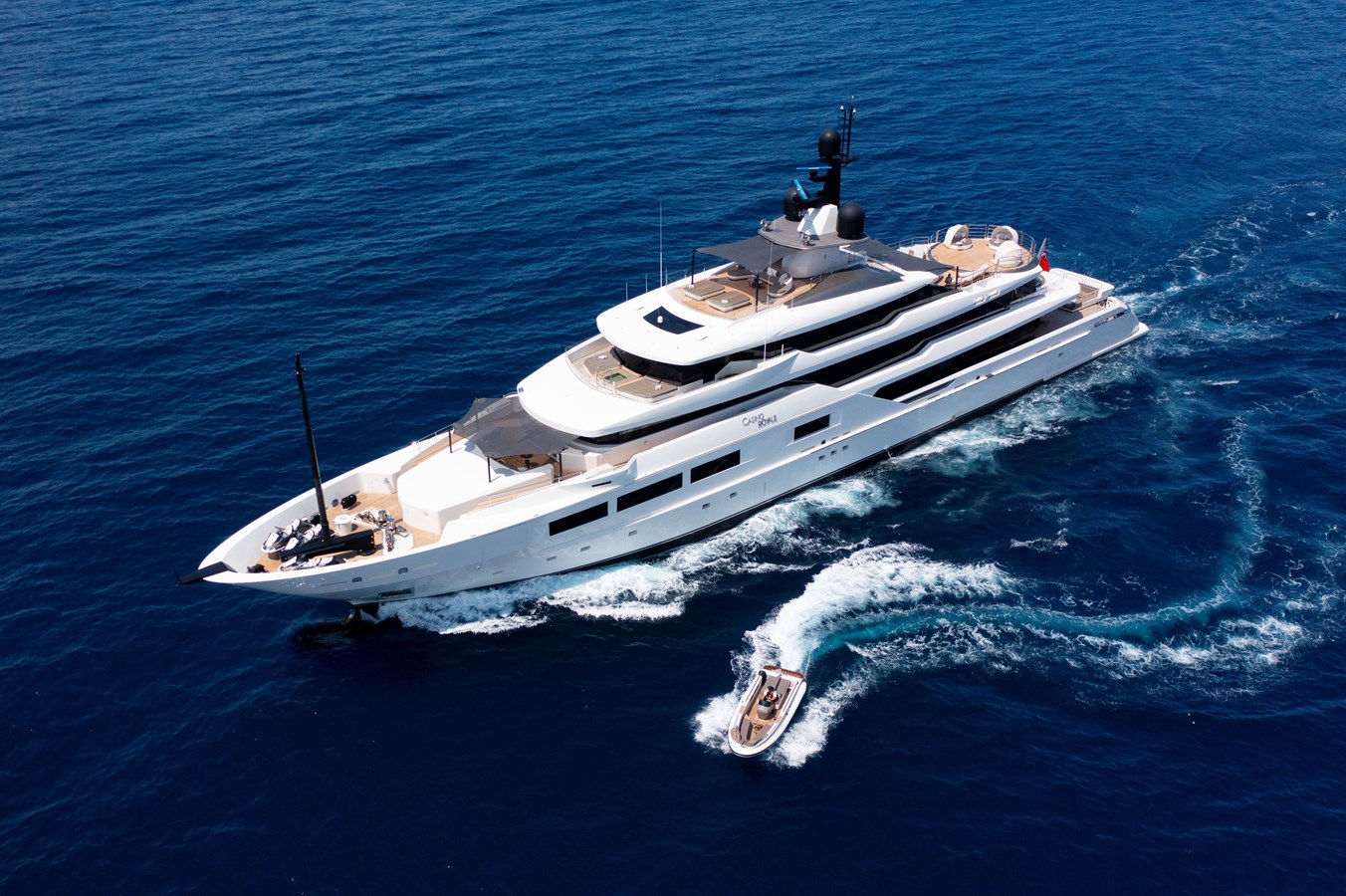

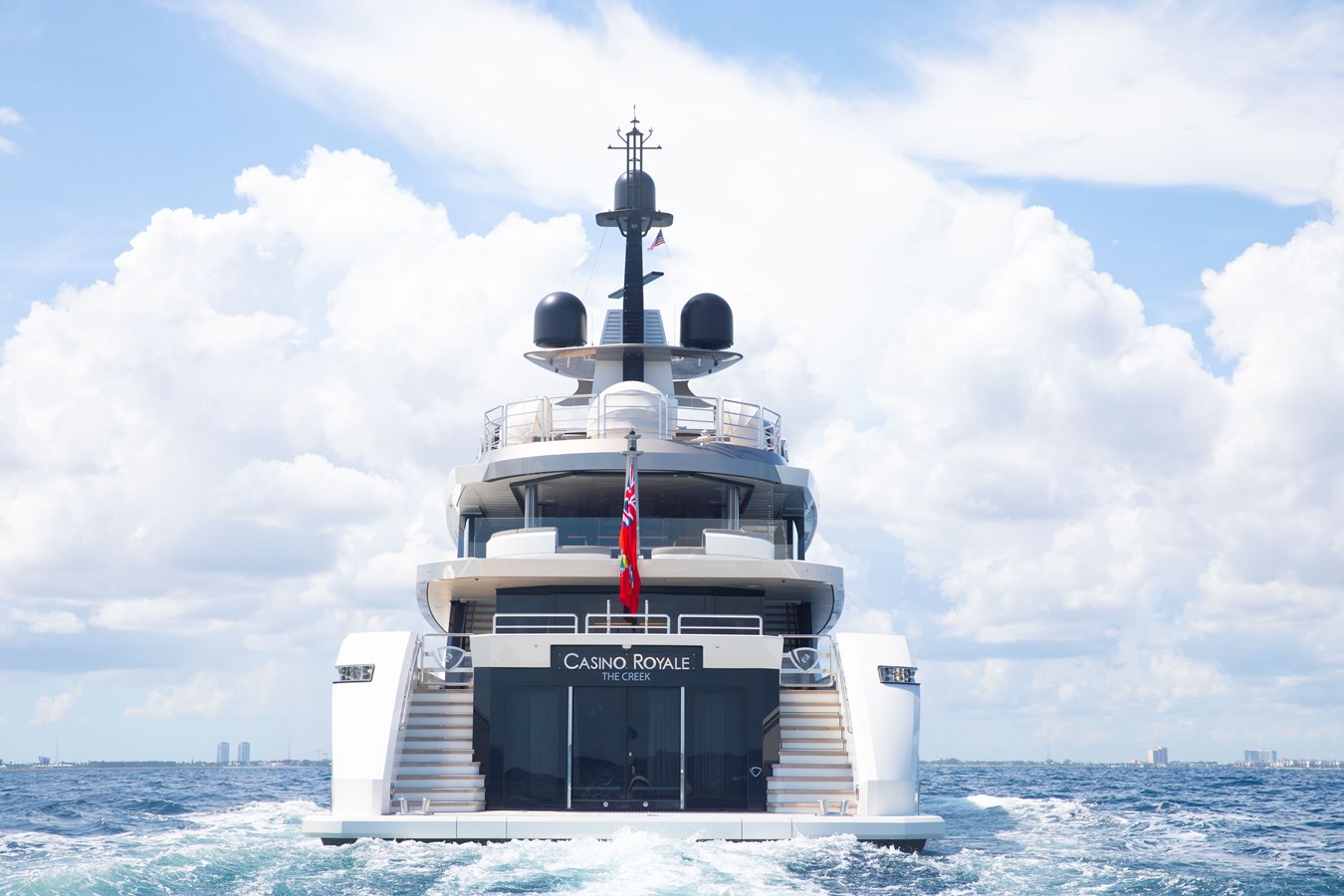

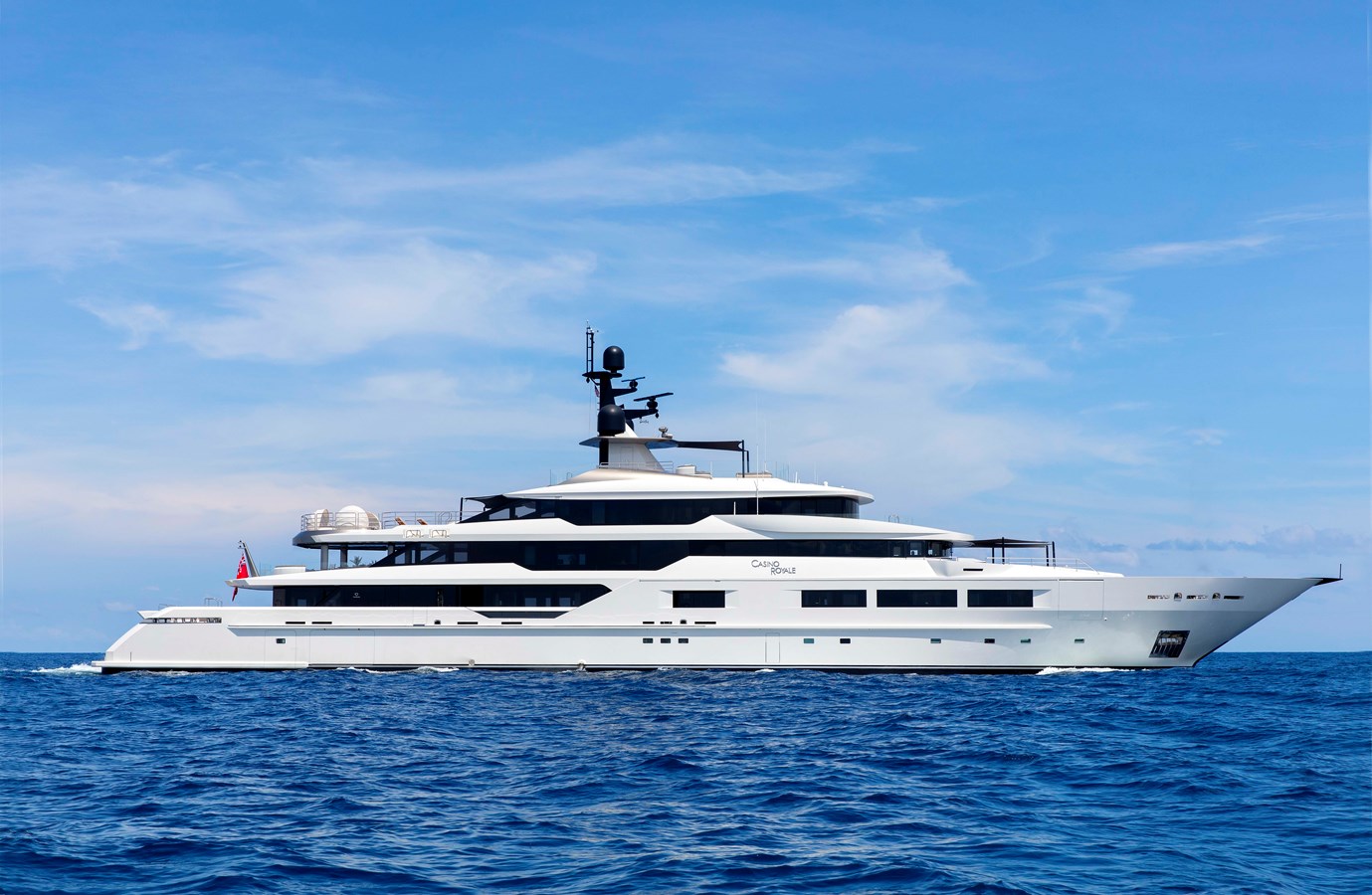

CASINO ROYALE

Main Specs

TYPE                                                 Twin Screw Diesel Yacht

FLAG                                                Cayman Islands

DIMENSIONS                                   Length O.A.         72m (236.2ft)

                                                         Beam                    11.6m (38ft)

                                                         Draft                      3.4m(11.2ft)

TONNAGE                                        1,541 GT

YEAR BUILT                                      2018 (refitted 2023)

BUILDER                                           Tankoa Yachts, Italy

NAVAL ARCHITECT                        StudioRuggerio

INTERIOR DESIGNER                        Margherita Casprini

EXTERIOR DESIGNER                      Francesco Paszkowski

CONSTRUCTION                              Steel Hull, aluminium superstructure, teak decks

CLASSIFICATION                             Lloyds Register

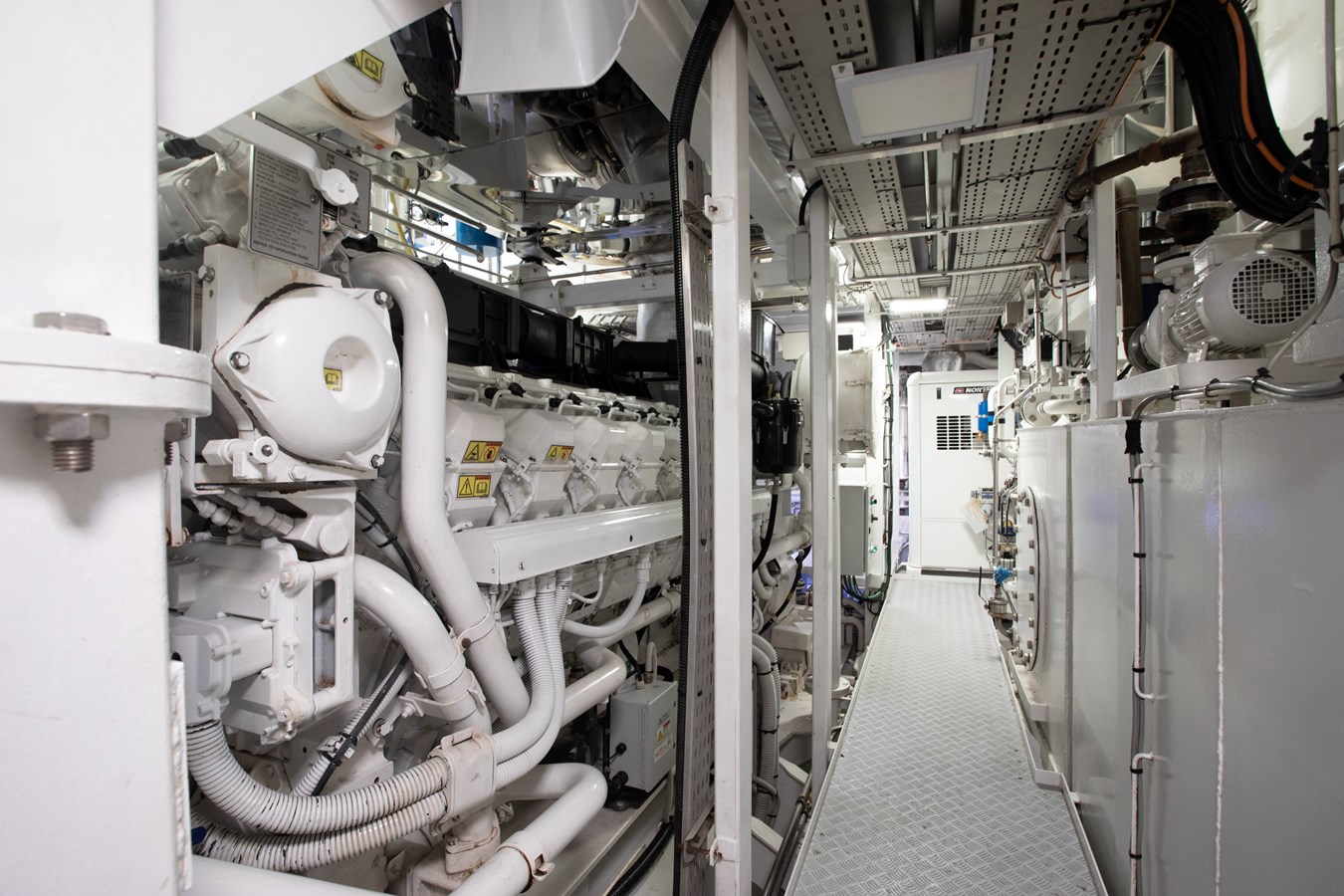

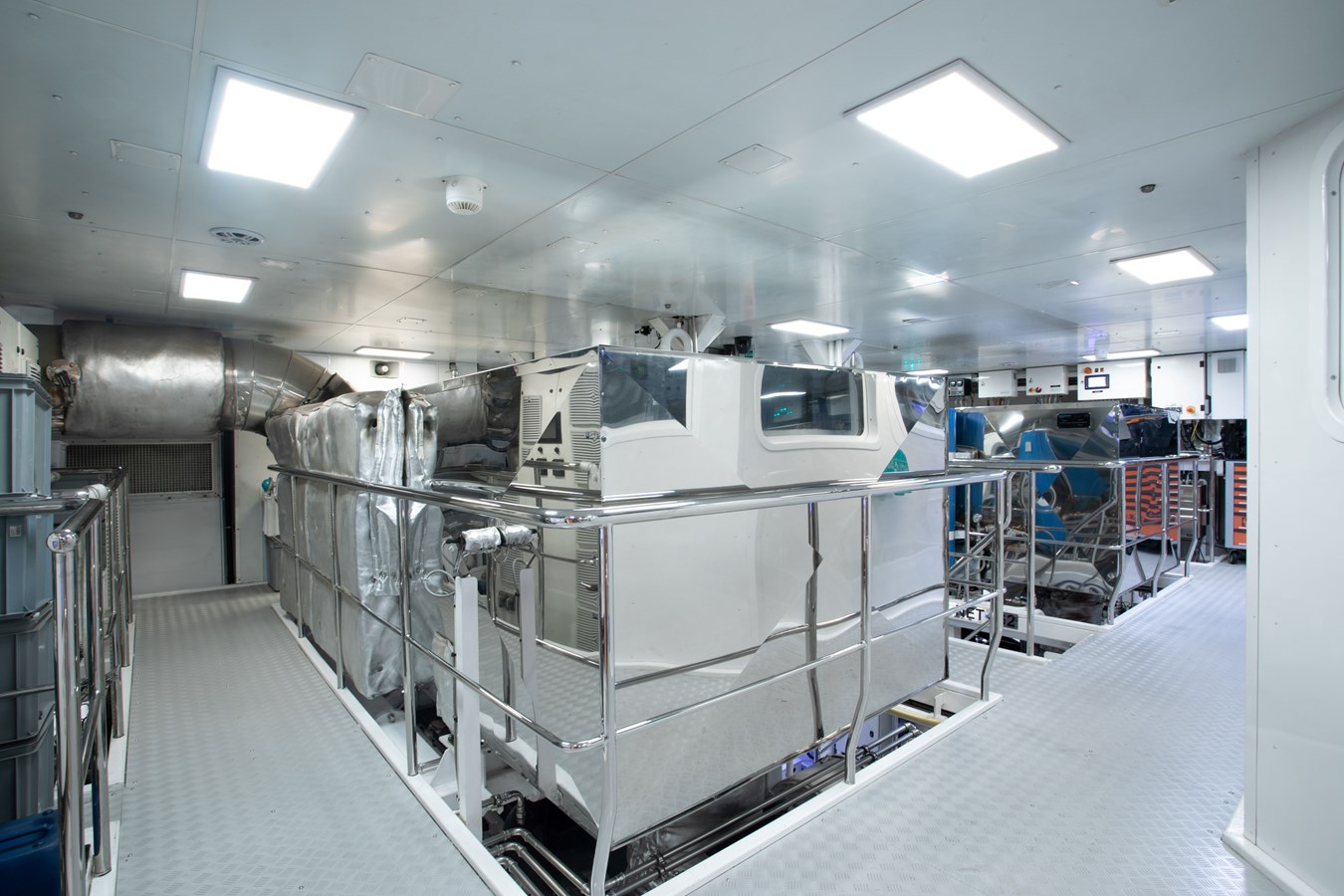

Machinery

MAIN ENGINES                               2x Caterpillar 3516 B DITA-SCAC HD 1,825kW / 2,480HP @ 1,600rpm

ENGINE HOURS                               November 2024

                                                         Port: 6387

                                                         Stbd: 6383

GEAR BOXES                                   2x ZF 7541, reduction rate 3.63: 1

SHAFTS BEARING                            Tufcot T100 Marine: Polyester resin based bushing material, incl. Molybdenum Disulphide powder and PTFE powder, Lubricant water

PROPELLERS                                     2 x 5-bladed, fixed pitch, 1,700mm diameter (Detra) in NI.BR.AL

SPEEDS & FUEL                                Maximum speed 17.5 kts

                                                         Cruising speed 14 kts

                                                         Economical speed 10 kts

RANGE & CONSUMPTION              10 kts – 9,400nm using 180 l/h with 1 x generator

                                                         14 kts – 6,200nm

                                                         17.5 kts – 3,500nm

Auxiliary Machinery & Electrical System

MAIN GENERATORS                        2 x Northern Lights M1276A - 287,5kVA / 230kW

1 x Northern Lights M1066 - 193,75kVA / 155kW

GENERATOR HOURS                       November 2024:

                                                         Port: 10190

                                                         Stbd: 11777

                                                         Fwd: 3418

EMERGENCY GENERATOR             1 x Northern Lights M1066T 80 kW

ELECTRICITY                                     400V / 3-phase / 50 Hz - all power services

230V / Single phase / 50Hz - lighting and small power services

24V DC - emergency lighting, signalling circuits, control equipment, navigation aids

SHORE POWER                               2 x 125 kVA @ 400 V/ 50Hz/ 3-phase +                                                          Neutral                                                                                                              Magnus Marine SP200 / 100-1000 kVA                                                          Single/3 phase

BATTERIES                                         22 x Lithium Ion Phosphate, 2 x Lead acid

Tank Capacities (approximate)

FUEL                                                 184,000 litres (48,607 US gallons)

WATER                                              37,600 litres (9,932 US gallons)

WATERMAKERS                                2 x Idromar Mc- 20 producing 20,000 litres per / day

CLEAN LUB OIL                               4,500 litres (1,189 US gallons)

DIRTY LUB OIL                                 4,500 litres (1,189 US gallons)

GREY WATER                                   4,200 litres (1,110 US gallons)

BLACK WATER                                 31,600 litres (8,347 US gallons)
